Probes’ accessories
| P2i | P2iP | P5i | P5iP | P2 | P5 | P10 | P25 | P12D | LPD | |||
 |

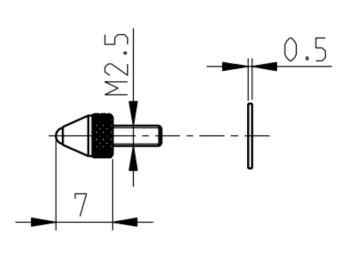

905-2204 | Stainless steel contact point M2.5 with TC ball probe (other contact points, see chapter digital indicators) |
⬤ | ⬤ | ⬤ | ⬤ | ⬤ | |||||
 |

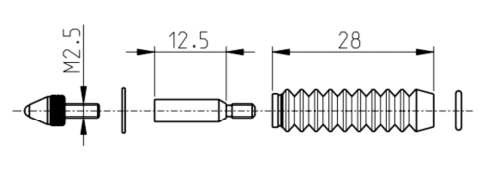

901-2003 | Rubber boot and contact point set | ⬤ | |||||||||
 |

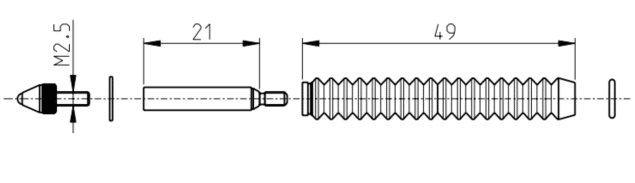

901-2004 | Rubber boot and contact point set | ⬤ | |||||||||
 |
901-2005 | Lifting device with photo-cable | ⬤ | ⬤ | ⬤ | |||||||
| 901-2012 | Tube Ø 4 mm / 2 mm, Length to be specified | ⬤ | ⬤ | ⬤ | ||||||||
| 901-2013 | Tube Ø 6 mm / 4 mm, Length to be specified |
⬤ | ⬤ | ⬤ | ||||||||
| 901-2014 | Double tube diameter 2 x 4 mm /2 mm, Length to be specified |
⬤ | ⬤ | ⬤ | ||||||||
 |
901-5110 | Bridle 90° | ⬤ | ⬤ | ||||||||
 |
905-2224 | Plastic lifting lever (bottom) | ⬤ | ⬤ | ⬤ | ⬤ | ⬤ | ⬤ | ⬤ | ⬤ | ⬤ | |
| 905-2225 | Plastic lifting ring (bottom) | ⬤ | ⬤ | ⬤ | ⬤ | ⬤ | ⬤ | ⬤ | ⬤ | ⬤ | ||
 |

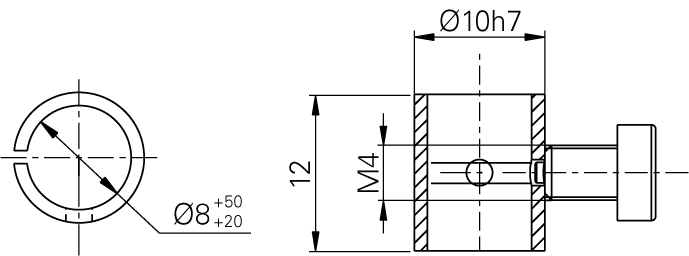

905-2231 | Sleeve Ø8 –>10mm with locking screw | ⬤ | ⬤ | ⬤ | ⬤ | ⬤ | ⬤ | ⬤ | ⬤ | ⬤ | |
 |
801-8003 | Stylus M2 Ø3mm, length 12.5mm | ⬤ | |||||||||
 |
801-8004 | Stylus M2 Ø3mm, length 32.3mm | ⬤ | |||||||||
 |
901-5002 | Cable 1.5 m | ⬤ | |||||||||
 |
901-5012 | Cable 1.5 m | ⬤ | |||||||||
 |

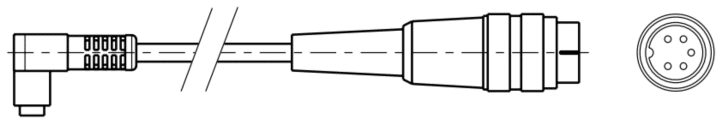

901-5032 | Cable 1.5 m bent | ⬤ | |||||||||
 |

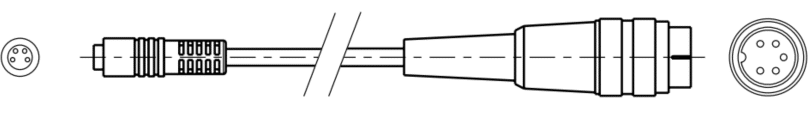

901-5042 | Cable 1.5 m | ⬤ | |||||||||
 |

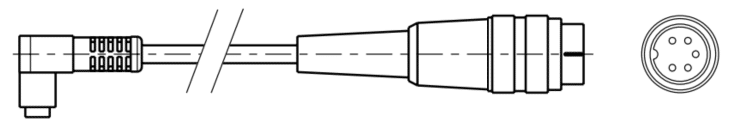

901-5052 | Cable 1.5 m bent | ⬤ | |||||||||
 |
905-2231 | Adapting socket + screw | ⬤ | ⬤ | ⬤ | ⬤ | ⬤ | ⬤ | ⬤ | ⬤ | ⬤ | |
 |
801-5101 | Bridle 90° | ⬤ | |||||||||
 |
801-5202 | 2m extension for probe M8 | ⬤ | ⬤ ¹ | ||||||||
|
801-5210 | 10m extension for probe M8 | ⬤ | ⬤ ¹ | ||||||||
 |

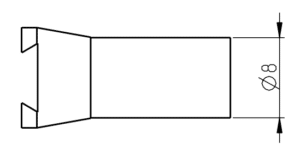

801-8002 | Clamping stem Ø8mm | ⬤ ¹ |
|||||||||
 |
C310-510 200 | Cable 2m USB | ⬤ ¹ | |||||||||
 |
C310-510-300 | Cable 2m OPEN | ⬤ ¹ | |||||||||
 |
C310-510 100 | Cable 2m M8 female to M8 male | ⬤ ¹ | |||||||||
 |
C310-510-500 | Bent cable 2m M8 to USB | ⬤ ¹ | |||||||||
 |
C310-510-600 | Bent cable 2m M8 female to M8 male |
⬤ ¹ | |||||||||
 |
905-4211 | Center lug back | ⬤ | |||||||||
¹ for wired model only
