Lever probe S_Probe LPD
Starting at :
Description

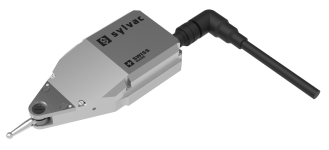

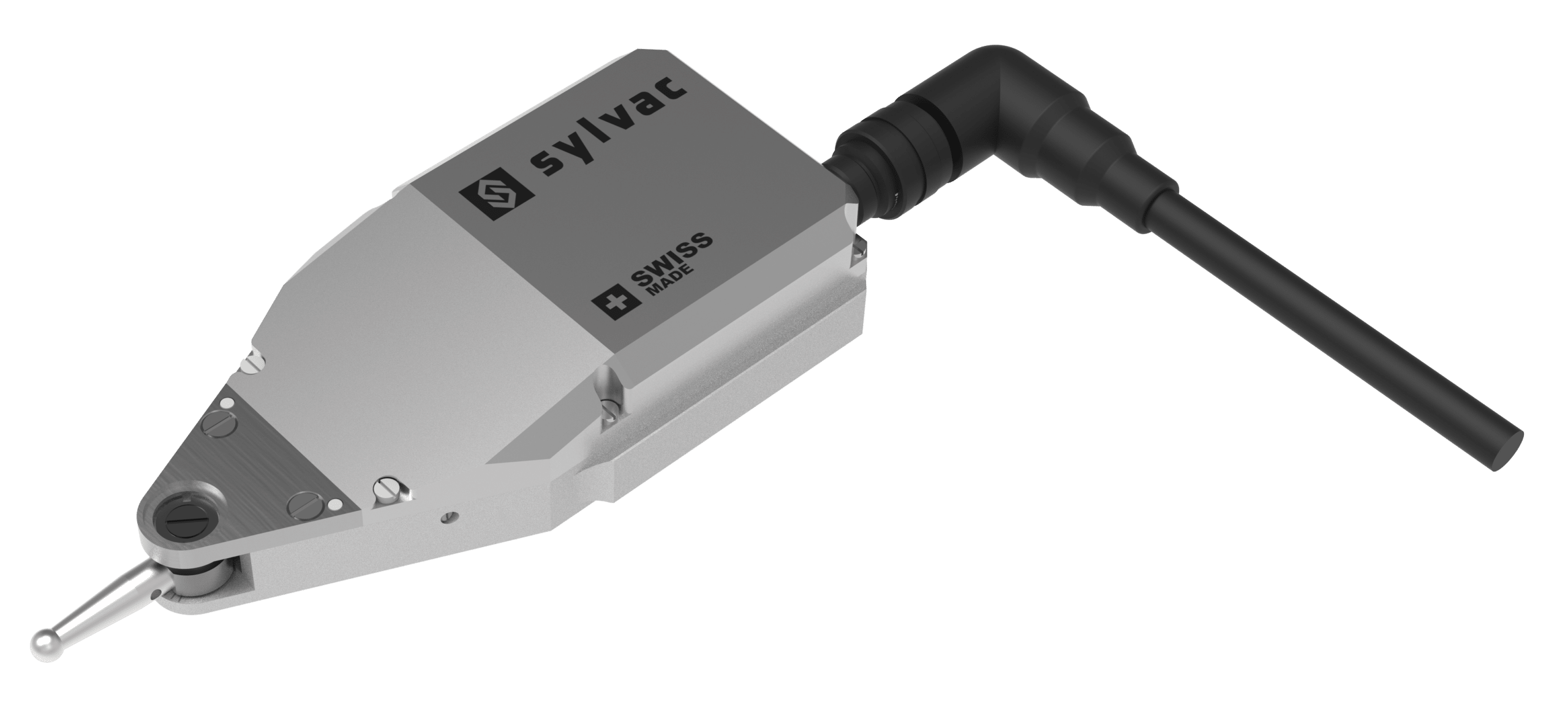

Lever probe with direct digital output.
Also available in Bluetooth® version.
Resolution: 0.01µm
Swiss made
Cable
Features
- Exceptionnal Measurement Capabilities: Sylvac’s absolute lever probe delivers an impressive resolution of 0.01 µm for the most demanding measurement tasks. Engineered for reliability, it minimizes hysteresis to ensure consistent and accurate results with outstanding repeatability and accuracy.
- Direct Digital Output: The probe can be connected directly to a computer via USB or an M8 industrial connector, allowing for seamless integration with data acquisition software such as Sylcom without the need for additional modules or display units.
- Compact and Versatile Design: With a maximum thickness of 16 mm, it’s tailored for applications in tight spaces and offers a dovetail mounting system for maximum flexibility. Our lever probe can handle a variety of setups, from jigs and fixtures to integration with height gauges or PLCs.
- Key applications:
- Integration into measuring jigs and fixtures
- Integration into automation, interaction with PLC
- Installation and maintenance of machines

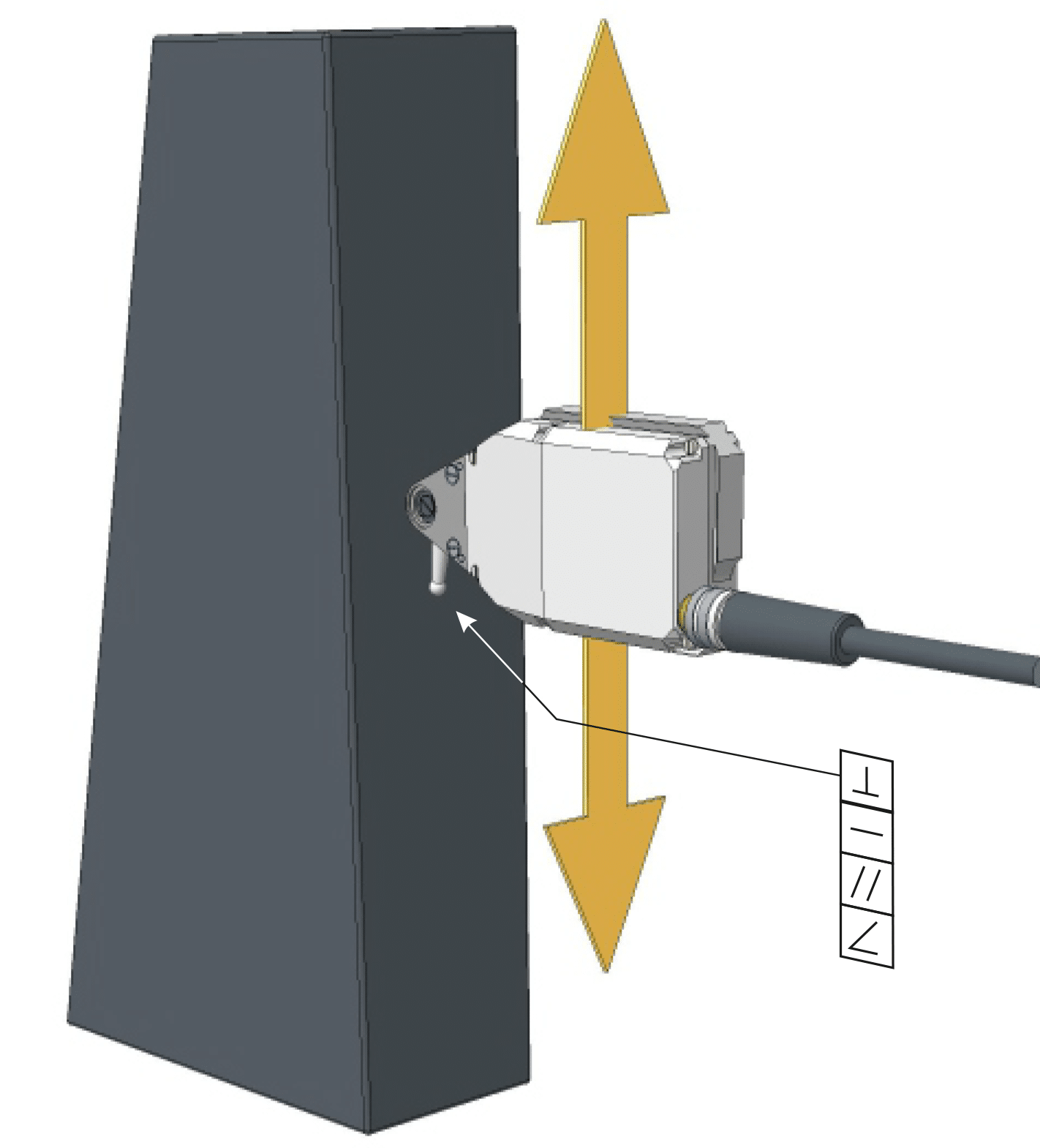

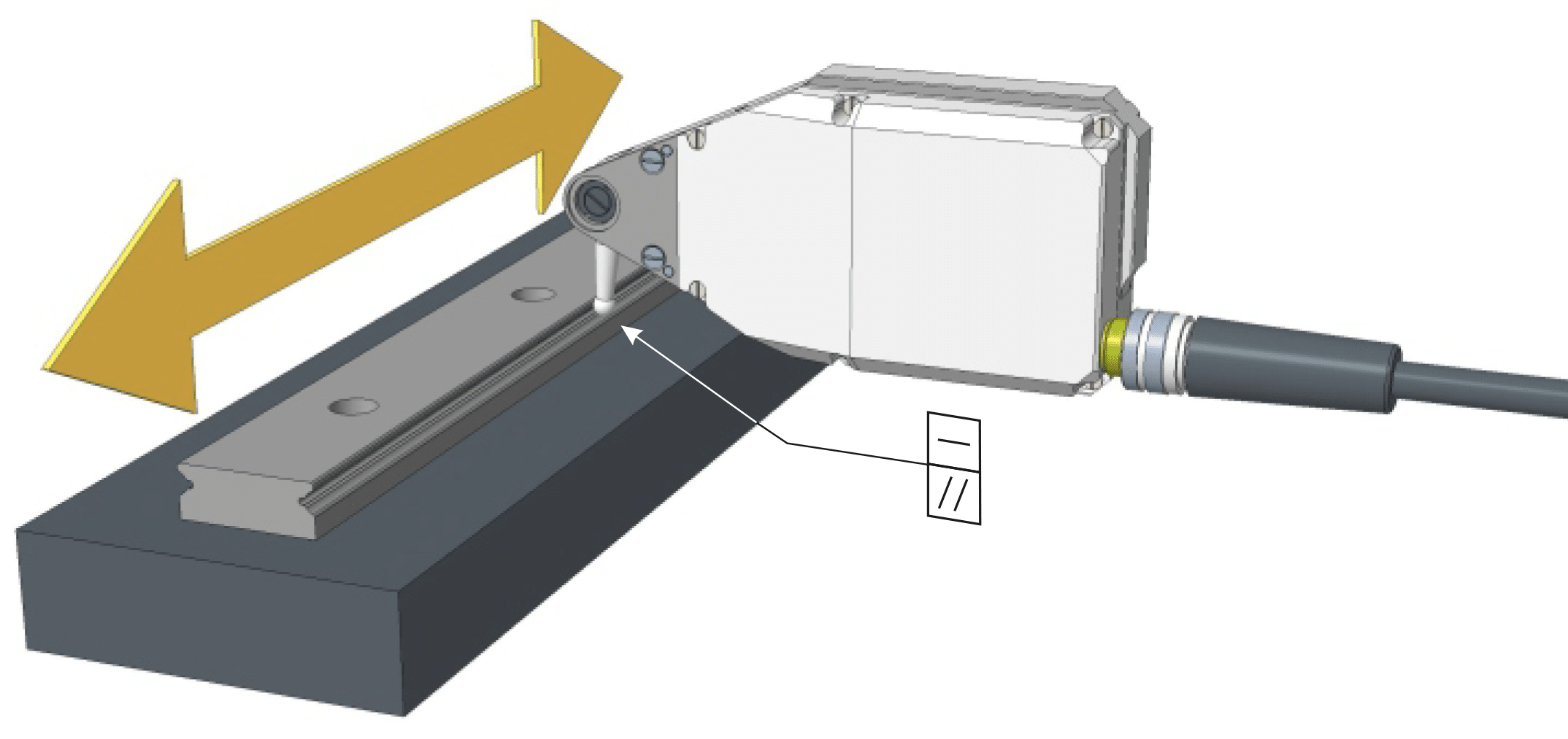

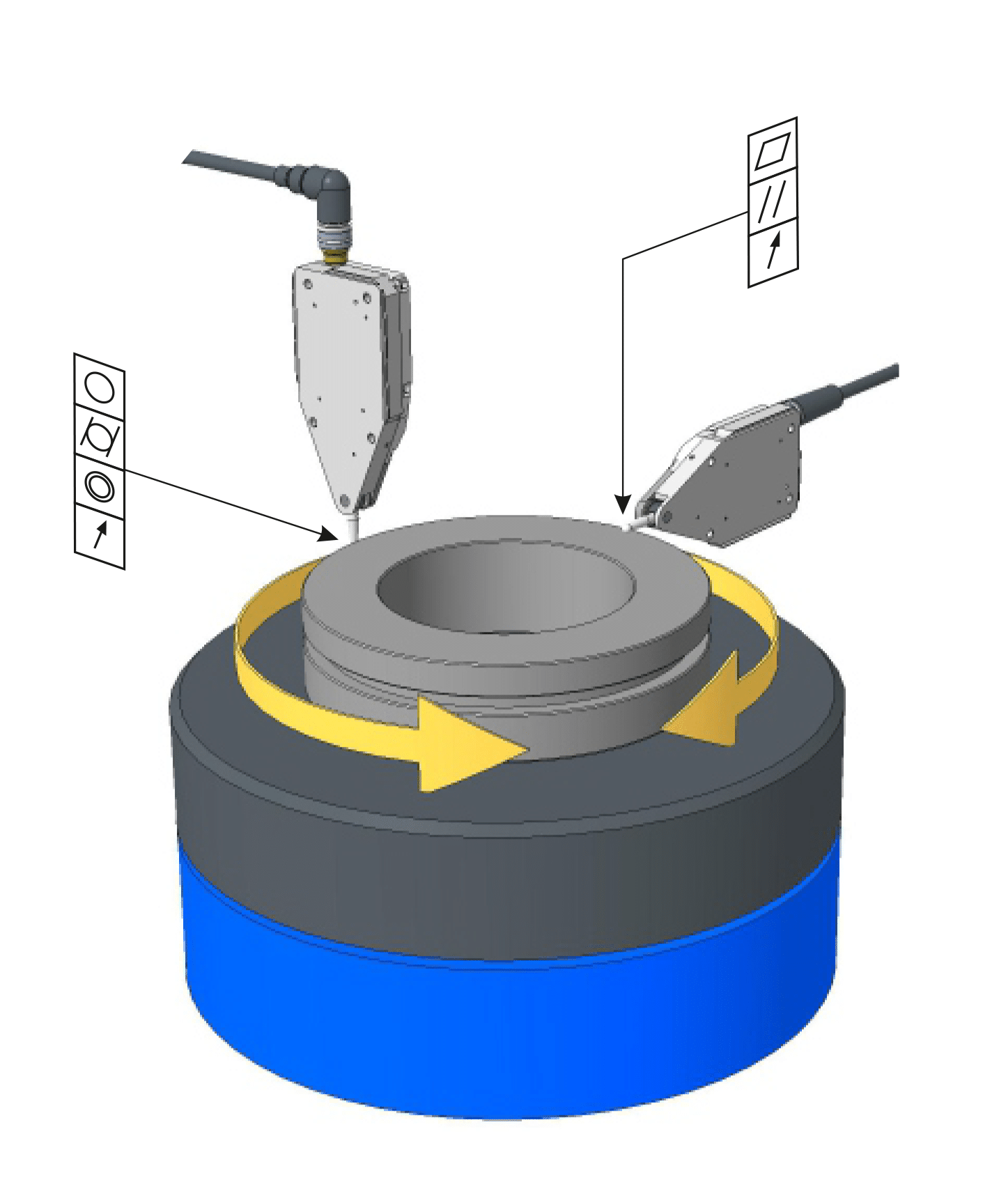

- Laboratory measurements, for example for flatness, runoutor perpendicularity
- Workshop applications, measurements on the machine
- Measurement with height gauge
- Use Cases: This lever probe is particularly effective for:
- Measurements in restricted or enclosed spaces.
- Assessing geometric tolerances (e.g., runout, concentricity).
- Non-contact surfaces not measurable via optical systems.
- Dynamic measurements.
- Exceptional Compatibility: Sylvac’s lever probes are fully compatible with the following Sylvac software and display units:
- D300S: Version 2.35 and higher (or 2.5 and higher for high-resolution applications, USB).
- D400S: With MB-4P interface.
- D62S: M8 connection.
- Sylcom: Version 1.3.1 and higher (USB).
- Vmux: Version 1.35 and higher (USB).
- PLC I/O (Open): For wired versions.
Applications
Form deviation
Industries
Automotive
Aeronautics
Packaging
Machine tool
Medical device
Watch making
Overview

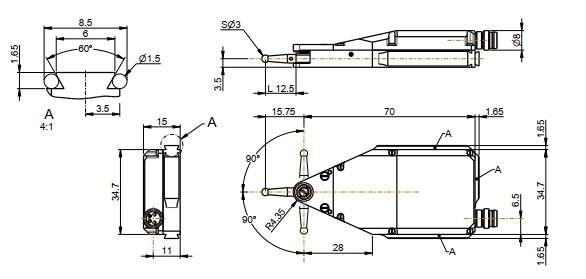

Specifications
Standard Delivery
Accessories
Applications
Tutorials
Documents
| 801-3012 | 801-3212 | 801-3412 | |
| EAN | 7640125698237 | 7640125698206 | 7640125698213 |
| Type | LPD USB | LPD M8 | LPD OPEN |
| Force (cN) | 12 ² | ||
| Measuring range (mm) | ± 0.6 | ||
| Resolution (µm) | 0.01 | ||
| Stylus length (mm) |
12.5 | ||
| Max. error (µm) | 0.8 | ||
| Local max. error (µm) | 0.3 ⁴ | ||
| Repeatability (µm) | 0.07 | ||
| Max. hysteresis (Fu) (µm) | 0.5 | ||
| Weight (g) | 92 ³ | ||
| Connection type (instrument to device) | USB ¹ | M8 ¹ | OPEN ¹ |
¹ Device: PC, display unit, …
² ± 50%, vertical position
³ cable-free instrument
⁴ max. local error over 50µm, unidirectional
Spécifications
| 801-3012 | 801-3212 | 801-3412 | |
| EAN | 7640125698237 | 7640125698206 | 7640125698213 |
| Type | LPD USB | LPD M8 | LPD OPEN |
| Force (cN) | 12 ² | ||
| Measuring range (mm) | ± 0.6 | ||
| Resolution (µm) | 0.01 | ||
| Stylus length (mm) |
12.5 | ||
| Max. error (µm) | 0.8 | ||
| Local max. error (µm) | 0.3 ⁴ | ||
| Repeatability (µm) | 0.07 | ||
| Max. hysteresis (Fu) (µm) | 0.5 | ||
| Weight (g) | 92 ³ | ||
| Connection type (instrument to device) | USB ¹ | M8 ¹ | OPEN ¹ |
¹ Device: PC, display unit, …
² ± 50%, vertical position
³ cable-free instrument
⁴ max. local error over 50µm, unidirectional
Standard Delivery
| Standard delivery |
| Instrument according to technical specifications |
| Straight cable, length 2m, output type according to model |
| Quickstart |
| Clamping stem Ø 8 mm (801-8002) |
| 1 contact point M2, with MD ball Ø3, length 12.5mm |
| Calibration certificate |
