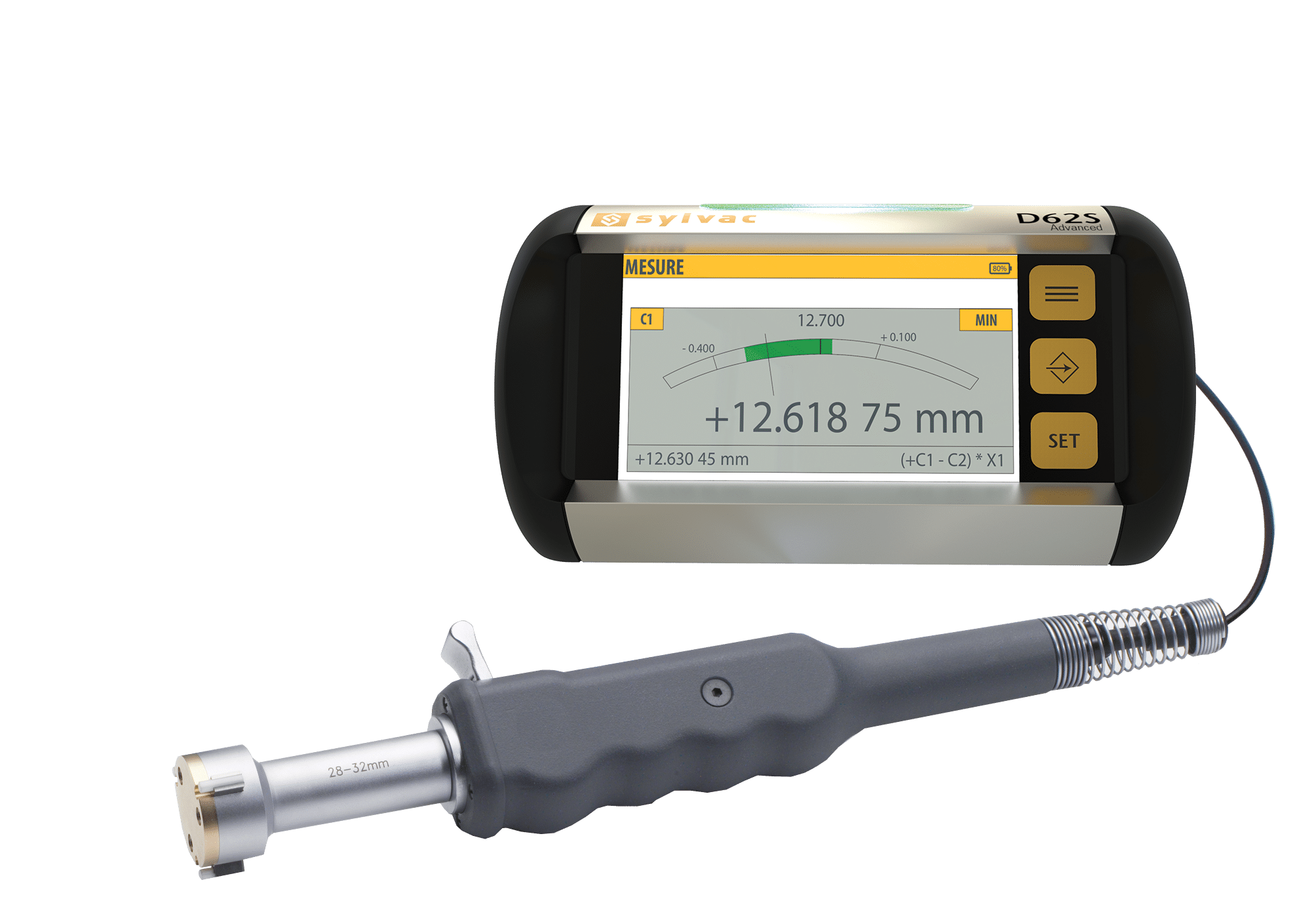

sylvac-high-accuracy-internal-measurement-ultima-with-d62s-advanced-display-unit

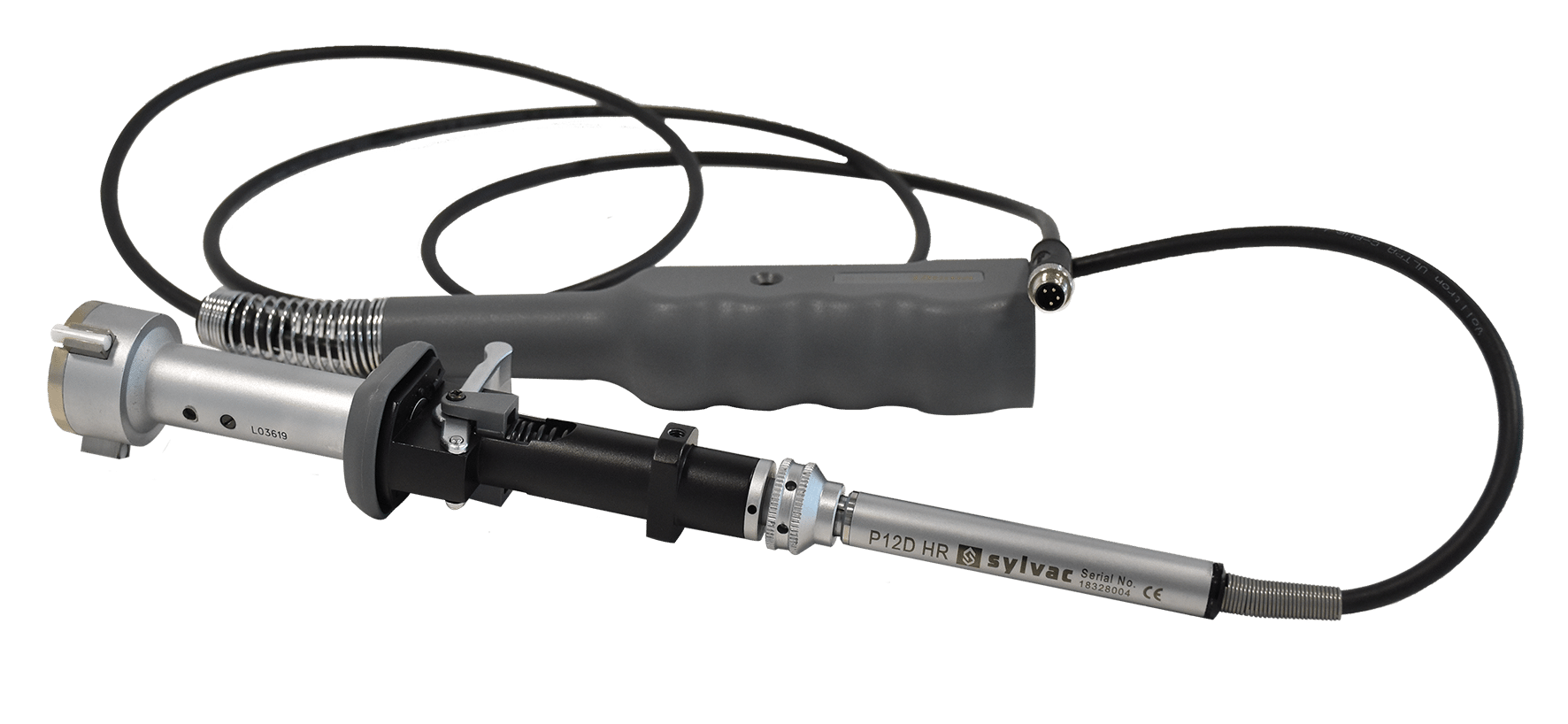

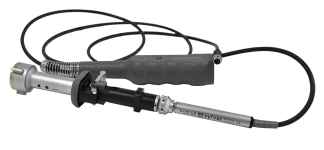

Ultima_P12D_extraction_low

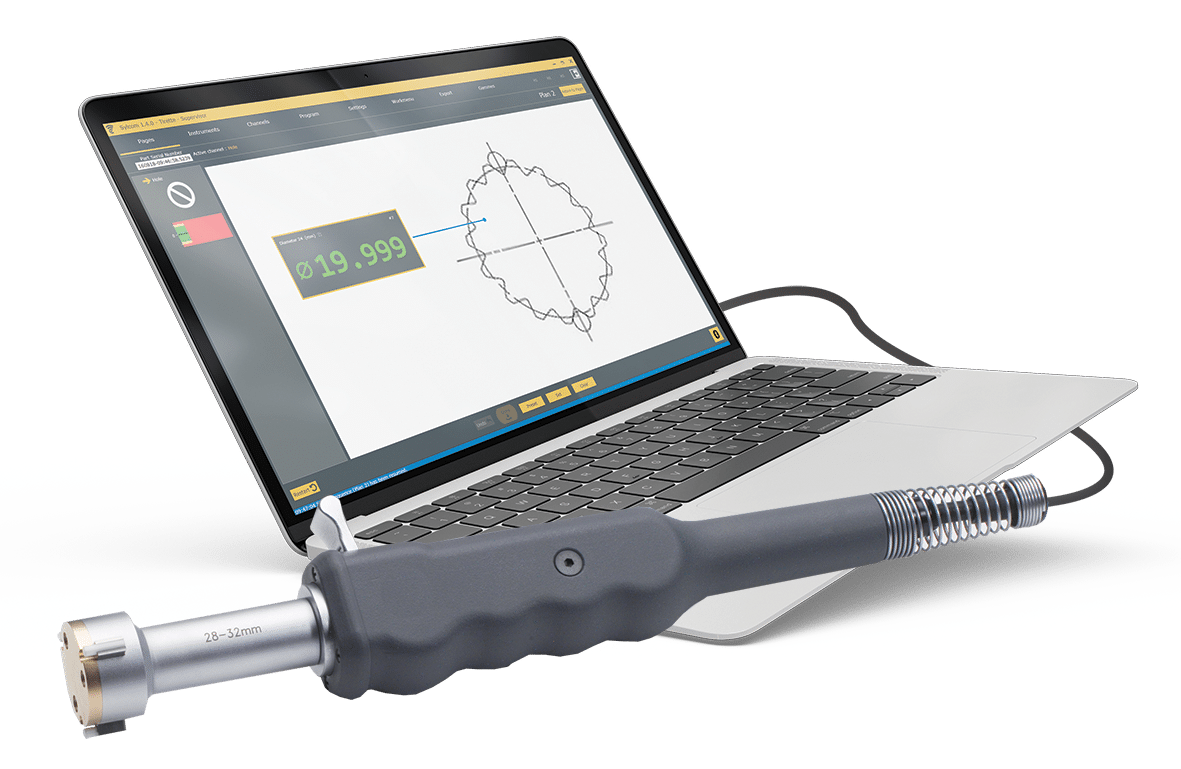

Superbore_D62S_NEW - USB

High accuracy internal measurement Ultima

Description

High accuracy internal measurement set.
0.1um
0.1µm
Cable
Cable
Technical data
Request a price

Features

  • Complete Solution for Bore Measurements: Our high-precision internal measuring set provides a comprehensive solution. It includes an ergonomic handle with a release lever, an absolute digital probe mounted in the handle, a measuring head, an external display unit for reading the value, a calibration ring, and certificates.
  • Unmatched Precision and Versatility: Achieve unparalleled accuracy with a measuring range from 2 to 310 mm and a display resolution of up to 0.0001 mm. The solution features interchangeable measuring heads using a quick system, offering 2 points (Ø 2 to 6 mm) and 3 points (from Ø 6 mm) for versatile applications.
  • Built to Last and Adapt: Designed for inspection and machine shop use, our solution boasts a robust construction. It seamlessly integrates with all Sylvac digital displays. Additionally, we offer tungsten carbide heads up to Ø 10-12 mm and ceramic heads from Ø 12-14 mm. Special heads are also available for custom measurements.
  • Convenient Packaging for Optimal Protection: For your convenience, our solution is delivered in a sturdy wooden box. This ensures secure storage and easy transportation. It is available as an individual instrument or as a set, providing flexibility to suit your specific needs.

Applications

icon-diameter
Diameter

Industries

icon-automotive-sylvac
Automotive
icon-aeronotics-sylvac
Aeronautics
icon-oackaging-sylvac
Packaging
icon-machine-tool-sylvac
Machine tool

Overview

960-1206 960-1207 960-1208 960-1209 960-1210
EAN 7640125691177 7640125691184 7640125691191 7640125691207 7640125691214
Measuring range (mm) 2.0 – 2.5 2.5 – 3 3 – 4 4 – 5 5 – 6
Ring Ø (mm) 2.5 4 5
Depth (mm) 9 12 18
Max. Error (µm) 1
Connection type (instrument to device*) RS232 1:1
Mini USB to USB
Adaptator RS-USB
View cables info



960-1211 960-1212 960-1213 960-1214 960-1215
EAN 7640125691221 7640125691238 7640125691245 7640125691252 7640125691269
Measuring range (mm) 6 – 8 8 – 10 10 – 12 12 -14 14 – 17
Ring Ø (mm) 8 12 17
Depth (mm) 60 61
Max. Error (µm) 1
Connection type (instrument to device*) RS232 1:1
Mini USB to USB
Adaptator RS-USB
View cables info



960-1216 960-1217 960-1218 960-1219 960-1220
EAN 7640125691276 7640125691283 7640125691290 7640125691306 7640125691313
Measuring range (mm) 17 – 20 20 – 24 24 – 28 28 – 32 32 – 38
Ring Ø (mm) 17 24 32
Depth (mm) 61 69 72
Max. Error (µm) 1
Connection type (instrument to device*) RS232 1:1
Mini USB to USB
Adaptator RS-USB
View cables info



960-1221 960-1222 960-1223 960-1224 960-1225
EAN 7640125691320 7640125691337 7640125691504 7640125692006 7640125692013
Measuring range (mm) 38 – 44 44 – 50 50 – 60 60 – 70 70 – 80
Ring Ø (mm) 44 60 80
Depth (mm) 72 80
Max. Error (µm) 1 1.5
Connection type (instrument to device*) RS232 1:1
Mini USB to USB
Adaptator RS-USB
View cables info



960-1226 960-1227 960-1228 960-1229 960-1230
EAN 7640125692136 7640125692143 7640125692839 7640125692150 7640125692167
Measuring range (mm) 80 – 90 90 – 100 100 – 110 110 – 120 120 – 130
Ring Ø (mm) 80 100 120
Depth (mm) 80
Max. Error (µm) 1.5
Connection type (instrument to device*) RS232 1:1
Mini USB to USB
Adaptator RS-USB
View cables info



960-1231 960-1232 960-1233 960-1234 960-1235
EAN 7640125692174 7640125692181 7640125692198 7640125692204 7640125692211
Measuring range (mm) 130 – 140 140 – 150 150 – 160 160 – 170 170 – 180
Ring Ø (mm) 140 160 180
Depth (mm) 80
Max. Error (µm) 1.5
Connection type (instrument to device*) RS232 1:1
Mini USB to USB
Adaptator RS-USB
View cables info



960-1236 960-1237 960-1238 960-1239 960-1240
EAN 7640125692242 7640125692266 7640125692273 7640125692280 7640125692297
Measuring range (mm) 180 – 190 190 – 200 200 – 210 210 – 220 220 – 230
Ring Ø (mm) 180 200 220
Depth (mm) 80
Max. Error (µm) 1.5 2
Connection type (instrument to device*) RS232 1:1
Mini USB to USB
Adaptator RS-USB
View cables info



960-1241 960-1242 960-1243 960-1244 960-1245
EAN 7640125692303 7640125692310 7640125692327 7640125692334 7640125692341
Measuring range (mm) 230 – 240 240 – 250 250 – 260 260 – 270 270 – 280
Ring Ø (mm) 240 260 280
Depth (mm) 80
Max. Error (µm) 2
Connection type (instrument to device*) RS232 1:1
Mini USB to USB
Adaptator RS-USB
View cables info



960-1246 960-1247 960-1248
EAN 7640125692358 7640125692365 7640125692372
Measuring range (mm) 280 – 290 290 – 300 300 – 310
Ring Ø (mm) 280 300
Depth (mm) 80
Max. Error (µm) 2
Connection type (instrument to device*) RS232 1:1
Mini USB to USB
Adaptator RS-USB
View cables info

*Device: PC, display unit, …

Set Ultima 961-1302 961-1303 961-1304 961-1307
EAN 7640125692396 7640125692426 7640125692464 7640125692488
Measuring range (mm) 2 – 6 6 – 10 10 – 20 6 – 20
Number of rings 3 1 2 3



Set Ultima 961-1308 961-1309 961-1310
EAN 7640125692525 7640125692549 7640125692624
Measuring range (mm) 20 – 50 50 – 100 20 – 100
Number of rings 3 6
Talk to an expert
960-1206 960-1207 960-1208 960-1209 960-1210
EAN 7640125691177 7640125691184 7640125691191 7640125691207 7640125691214
Measuring range (mm) 2.0 – 2.5 2.5 – 3 3 – 4 4 – 5 5 – 6
Ring Ø (mm) 2.5 4 5
Depth (mm) 9 12 18
Max. Error (µm) 1
Connection type (instrument to device*) RS232 1:1
Mini USB to USB
Adaptator RS-USB
View cables info



960-1211 960-1212 960-1213 960-1214 960-1215
EAN 7640125691221 7640125691238 7640125691245 7640125691252 7640125691269
Measuring range (mm) 6 – 8 8 – 10 10 – 12 12 -14 14 – 17
Ring Ø (mm) 8 12 17
Depth (mm) 60 61
Max. Error (µm) 1
Connection type (instrument to device*) RS232 1:1
Mini USB to USB
Adaptator RS-USB
View cables info



960-1216 960-1217 960-1218 960-1219 960-1220
EAN 7640125691276 7640125691283 7640125691290 7640125691306 7640125691313
Measuring range (mm) 17 – 20 20 – 24 24 – 28 28 – 32 32 – 38
Ring Ø (mm) 17 24 32
Depth (mm) 61 69 72
Max. Error (µm) 1
Connection type (instrument to device*) RS232 1:1
Mini USB to USB
Adaptator RS-USB
View cables info



960-1221 960-1222 960-1223 960-1224 960-1225
EAN 7640125691320 7640125691337 7640125691504 7640125692006 7640125692013
Measuring range (mm) 38 – 44 44 – 50 50 – 60 60 – 70 70 – 80
Ring Ø (mm) 44 60 80
Depth (mm) 72 80
Max. Error (µm) 1 1.5
Connection type (instrument to device*) RS232 1:1
Mini USB to USB
Adaptator RS-USB
View cables info



960-1226 960-1227 960-1228 960-1229 960-1230
EAN 7640125692136 7640125692143 7640125692839 7640125692150 7640125692167
Measuring range (mm) 80 – 90 90 – 100 100 – 110 110 – 120 120 – 130
Ring Ø (mm) 80 100 120
Depth (mm) 80
Max. Error (µm) 1.5
Connection type (instrument to device*) RS232 1:1
Mini USB to USB
Adaptator RS-USB
View cables info



960-1231 960-1232 960-1233 960-1234 960-1235
EAN 7640125692174 7640125692181 7640125692198 7640125692204 7640125692211
Measuring range (mm) 130 – 140 140 – 150 150 – 160 160 – 170 170 – 180
Ring Ø (mm) 140 160 180
Depth (mm) 80
Max. Error (µm) 1.5
Connection type (instrument to device*) RS232 1:1
Mini USB to USB
Adaptator RS-USB
View cables info



960-1236 960-1237 960-1238 960-1239 960-1240
EAN 7640125692242 7640125692266 7640125692273 7640125692280 7640125692297
Measuring range (mm) 180 – 190 190 – 200 200 – 210 210 – 220 220 – 230
Ring Ø (mm) 180 200 220
Depth (mm) 80
Max. Error (µm) 1.5 2
Connection type (instrument to device*) RS232 1:1
Mini USB to USB
Adaptator RS-USB
View cables info



960-1241 960-1242 960-1243 960-1244 960-1245
EAN 7640125692303 7640125692310 7640125692327 7640125692334 7640125692341
Measuring range (mm) 230 – 240 240 – 250 250 – 260 260 – 270 270 – 280
Ring Ø (mm) 240 260 280
Depth (mm) 80
Max. Error (µm) 2
Connection type (instrument to device*) RS232 1:1
Mini USB to USB
Adaptator RS-USB
View cables info



960-1246 960-1247 960-1248
EAN 7640125692358 7640125692365 7640125692372
Measuring range (mm) 280 – 290 290 – 300 300 – 310
Ring Ø (mm) 280 300
Depth (mm) 80
Max. Error (µm) 2
Connection type (instrument to device*) RS232 1:1
Mini USB to USB
Adaptator RS-USB
View cables info

*Device: PC, display unit, …

Set Ultima 961-1302 961-1303 961-1304 961-1307
EAN 7640125692396 7640125692426 7640125692464 7640125692488
Measuring range (mm) 2 – 6 6 – 10 10 – 20 6 – 20
Number of rings 3 1 2 3



Set Ultima 961-1308 961-1309 961-1310
EAN 7640125692525 7640125692549 7640125692624
Measuring range (mm) 20 – 50 50 – 100 20 – 100
Number of rings 3 6
Talk to an expert
Standard Delivery (Individual)
Instrument according to technical specifications (handle with integrated probe + head)
Setting rings according to technical specifications
Wooden box ¹
Certificate



Standard Delivery (Set)
Instrument according to technical specifications (handle with integrated probe + head)
Setting rings according to technical specifications
 Digital display D62S Advanced (804-1063)
 Probe P12D Standard (801-2212)
Wooden box ¹
Instruction manual + certificate

¹ Fumigated compatible ISPM 15 and NIMP 15

Handles 961-3001 961-3002 961-3003 961-3004
Measuring range (mm) 2 – 6 6 – 20 20 – 100 100 – 310

Probe included

Extensions 961-2001 961-2002 961-2003 961-2004 961-2005 961-2006 961-2007
Measuring range (mm) 6 – 10 10 – 12 12 – 20 20 – 50 50 – 310 20 – 50 50 – 310
Length (mm) 63 75 100 50 150
