Curved thickness gage Taper Gage Smart
Starting at :
Description
Professional Straight curved thickness gage with integrated Bluetooth® Wireless Technology.
* Available in different measurement ranges.
Features

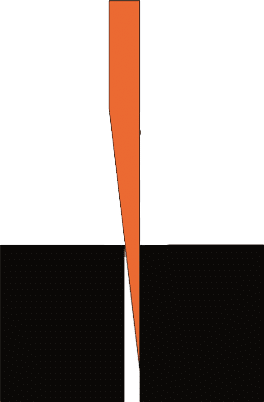

- Patented Design: Innovative technology for gap width measurement.
- Wireless Digital Connectivity: Integrated Bluetooth® for seamless data export.
- Quick Measurements: One-push operation for repetitive tasks such as turbine blading and rotor alignment.
- Durable & Reliable: IP67-rated for protection against water, coolants, and lubricants.

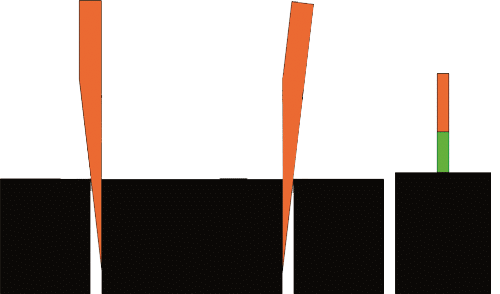

- Exceptional Precision: Ensures accurate results for radial and axial gap alignment.
Applications
Distance
Industries
Automotive
Aeronautics
Packaging
Machine tool
Overview
Specifications
Standard Delivery
Accessories
Applications
Tutorials
Documents

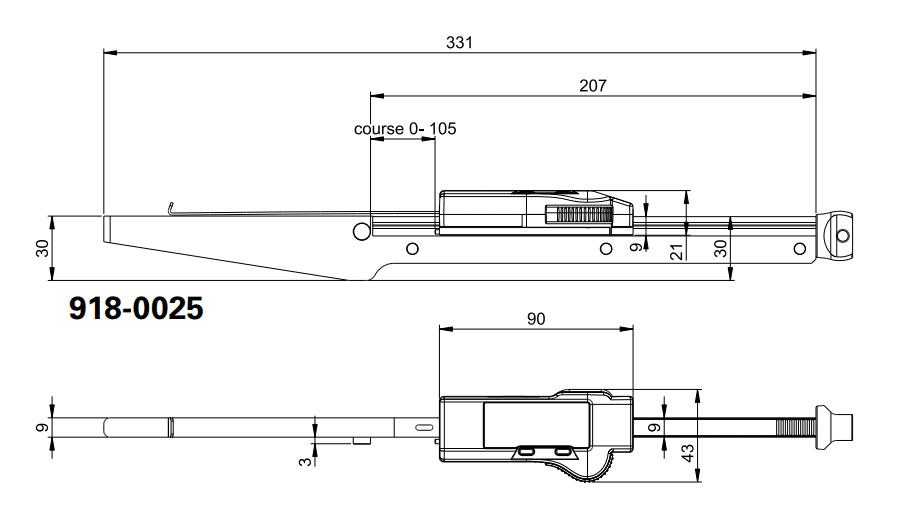

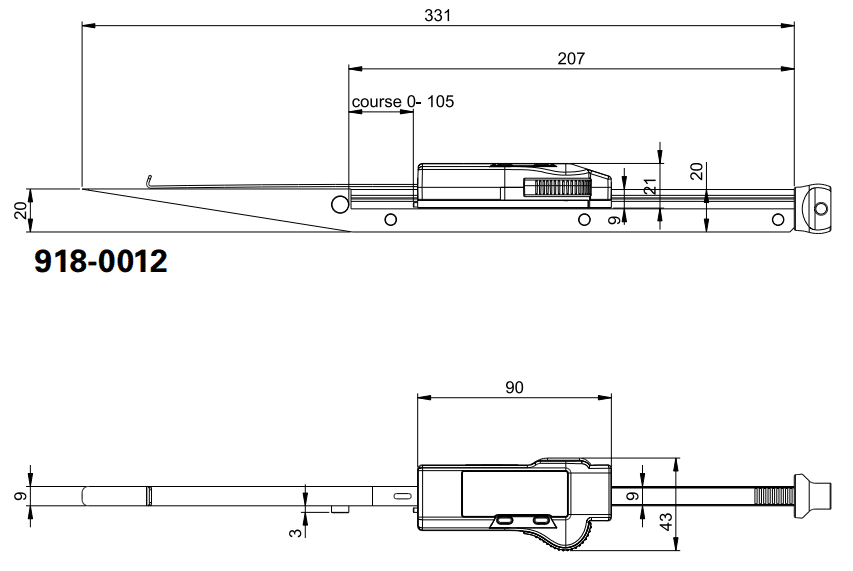

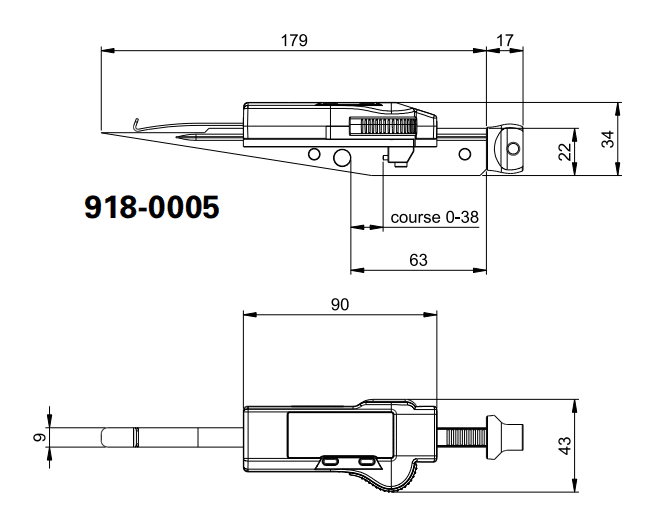

| 918-0005 | 918-0012 | 918-0025 | |
| EAN | 7640125698251 | 7640125698268 | 7640125698282 |
| Measurement capacity (mm) | 0.5 – 5.5 | 0.5 – 17.5 | 12.5 – 28.5 |
| Repeatability (μm) | 10 | ||
| Max. error G (μm) | 30 | ||
| Resolution (mm) | 0.01 | ||
| Protection rating according to IEC 60529 | IP67 | ||
| Connection type (instrument to device) | Bluetooth® Wireless Technology ¹ | ||
| Weight (g) | 270 | 382 | 510 |
| Functions | Preset | ||
¹ Device: PC, display unit, …
Spécifications
| 918-0005 | 918-0012 | 918-0025 | |
| EAN | 7640125698251 | 7640125698268 | 7640125698282 |
| Measurement capacity (mm) | 0.5 – 5.5 | 0.5 – 17.5 | 12.5 – 28.5 |
| Repeatability (μm) | 10 | ||
| Max. error G (μm) | 30 | ||
| Resolution (mm) | 0.01 | ||
| Protection rating according to IEC 60529 | IP67 | ||
| Connection type (instrument to device) | Bluetooth® Wireless Technology ¹ | ||
| Weight (g) | 270 | 382 | 510 |
| Functions | Preset | ||
¹ Device: PC, display unit, …
Standard Delivery
| Standard Delivery |
| Instrument according to technical specifications |
| Instruction manual |
Accessories
Not available
