Absolute digital measuring probe P25D Smart
Starting at :
Description
Digital measuring probe with Bluetooth® technology integrated.
Features
- Precision at Your Fingertips: This probe provides high-precision measuring with a range of 25mm and a resolution of 0.01µm. Its patented dual inductive system ensures accuracy and repeatability
- Built to Last: With an extremely robust ball bearing guide and a stainless steel body, the probe is designed to withstand heavy-duty workshop use. Its protection class IP54 ensures durability and longevity.
- Lightning-Fast Readings: Up to 100 values per second (depending on configuration) ensure fast and efficient measurement.
- Accuracy You Can Count On: The P25D has a maximum error of 1.2µm and a repeatability of 0.08µm, ensuring precise and reliable results every time.
Applications
Form deviation
Distance
Industries
Automotive
Electronics
Aeronautics
Packaging
Machine tool
Medical device
Overview
Specifications
Standard Delivery
Accessories
Applications
Tutorials
Documents
| 801-1626 | 801-1636 | |
| EAN | 7640125698077 | 7640125698084 |
| Type | P25D Smart | P25D Smart CF |
| Force (N) | 0.7 – 1.3 ² | 0.15 ² ³ |
| Measuring range (mm) | 25.4 | |
| Resolution (µm) | 0.01 | |
| Max. error (µm) | 1.2 | |
| Repeatability (µm) | 0.08 | |

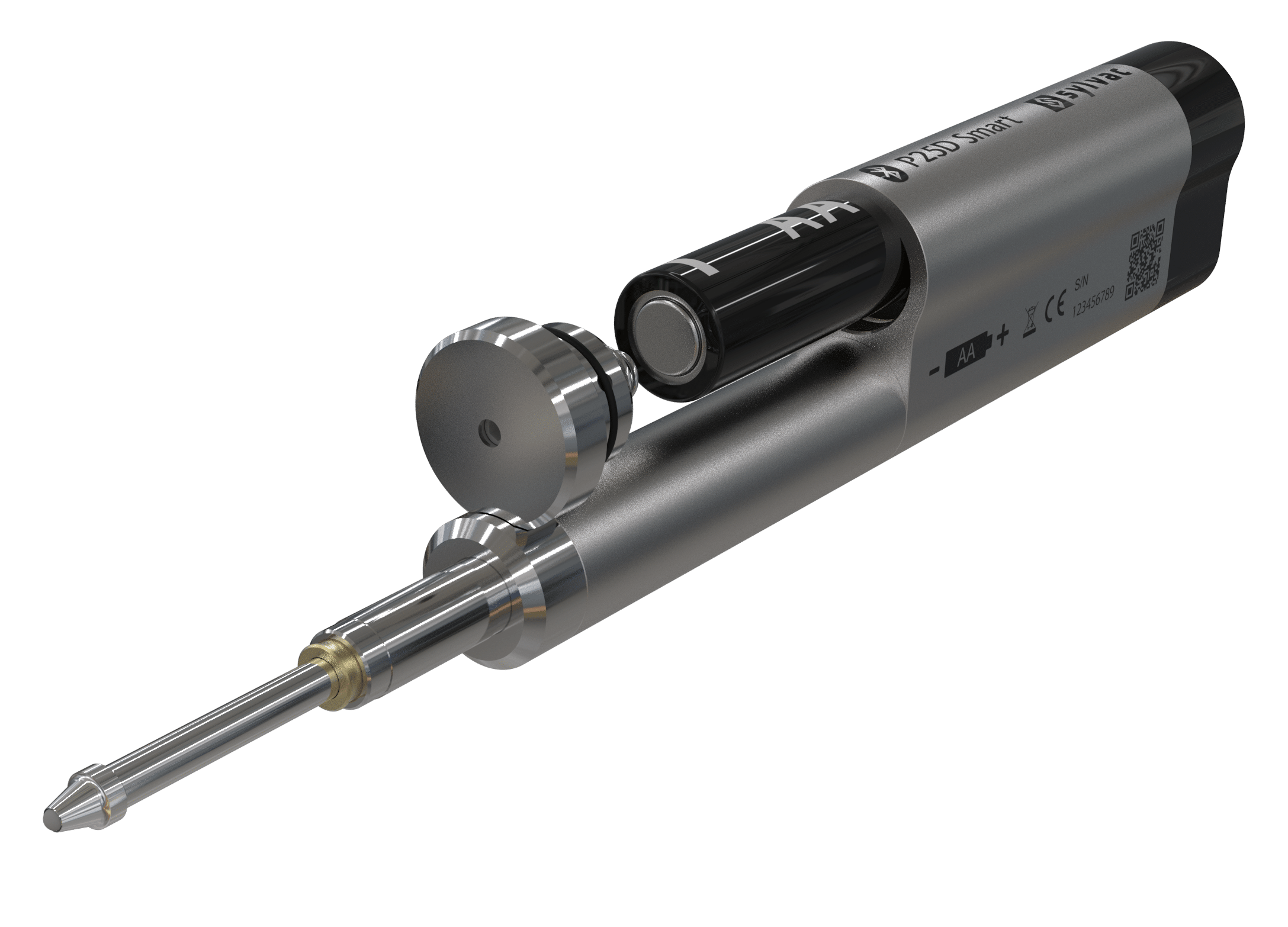

| Power supply | 1.5V AA (LR06) battery (rechargeable 1.2V battery can be used) / 4.5 – 5.5V on USB-C port | |
| Connection type (instrument to device) | Bluetooth® Wireless Technology ¹ | |
| Protection rating according to IEC 60529 | IP54 | |
¹ Device: PC, display unit, …
² ± 20%, vertical position
³ CF = constant force : usable only vertically, rod pointing downwards (without spring)
Spécifications
| 801-1626 | 801-1636 | |
| EAN | 7640125698077 | 7640125698084 |
| Type | P25D Smart | P25D Smart CF |
| Force (N) | 0.7 – 1.3 ² | 0.15 ² ³ |
| Measuring range (mm) | 25.4 | |
| Resolution (µm) | 0.01 | |
| Max. error (µm) | 1.2 | |
| Repeatability (µm) | 0.08 | |
| Power supply | 1.5V AA (LR06) battery (rechargeable 1.2V battery can be used) / 4.5 – 5.5V on USB-C port | |
| Connection type (instrument to device) | Bluetooth® Wireless Technology ¹ | |
| Protection rating according to IEC 60529 | IP54 | |
¹ Device: PC, display unit, …
² ± 20%, vertical position
³ CF = constant force : usable only vertically, rod pointing downwards (without spring)
Standard Delivery
| Standard delivery |
| Probe according to technical specifications |
| Battery AA |
| Stainless steel contact point with tungsten carbide ball Ø 2 mm |
| Quickstart |
| Calibration certificate |
